Transfer Learning Using Convolutional Neural Networks to Detect Spoofs in Fingerprints

This was originally done as a part of a class project.

1 Introduction

Detection of fake fingerprints is an important part of a fingerprint-based biometric system. These fake fingerprints are commonly called ”spoofs.” It is not enough that the system can tell apart one person from another, but also must be able to tell apart fake fingerprints from real fingerprints to inspire real confidence in its users. Spoof fingerprints can be made from common household materials and more materials are appearing which can be used to make these spoofs. Because of this, it is also important that a spoof detection system also can detect spoofs when novel types of materials are introduced to it.

A neural network may be used to solve this complex classification problem as it has the ability to learn from a large variety of samples and draw complex decision boundaries. ([1] Section 2.2.1) Neural networks are expensive to train for complex problems involving large dimensional data, such as images. It is possible to take a pre-trained general image classification neural network and reapply it to this classification task. This enables a much quicker training time and more accurate results than could be achieved by a small team.

2 Methods

The LivDet11 Database provides four types of detectors and five spoof materials. For training purposes two of the detectors were used: The Digital and Sagem detectors. Alexnet was used as a general image feature extractor. Alexnet has been trained on the ImageNet database, which is a general purpose image database.([2] 1) Alexnet has achieved a top-5 test error rate of 15.3% in the ILSVRC-2012 competition ([2] 1). AlexNet ”consists of five convolutional layers, some of which are followed by max-pooling layers, and three fully-connected layers with a final 1000-way softmax” ([2] 1) Convolutional Layers are particularly well suited for image processing because they take into account the spatial structure of the image. ([3] 1)

Alexnet is trained as a general image classifier, which is unsuitable for this experiment. In order to use it as a general image feature extractor, five of its final layers were removed. These layers in reverse order were a softmax classification layer, a dropout layer, a fully-connected layer with Relu activation, a dropout layer, and a fully-connected layer with Relu activation. This modified Alexnet was then activated on each of the images and the activations were saved to files.

A simple neural network was trained with 4096 inputs which are the output size of the last layer of the modified Alexnet, a variable hidden layer size, and a single output. All of the activations in that classifier were hyper tangent. The chosen objective function was mean squared error, as it is the most common criterion. ([1] Section B.6)

For inference on unknown materials the same method and classifier were applied, except the classifier was trained on all but 10% of the live samples and all but one of the spoof types. The classifier was then tested on the remaining 10% of the live samples and all of the spoof samples for that particular material.

3 Results

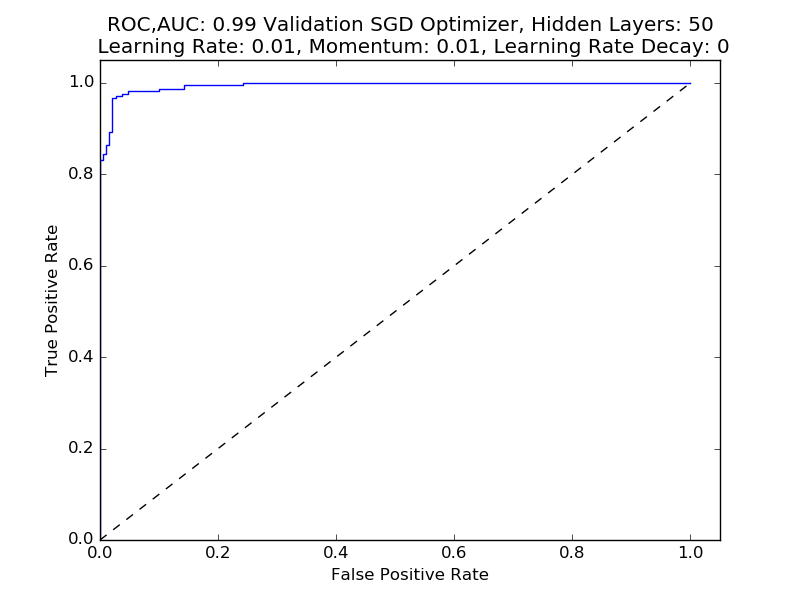

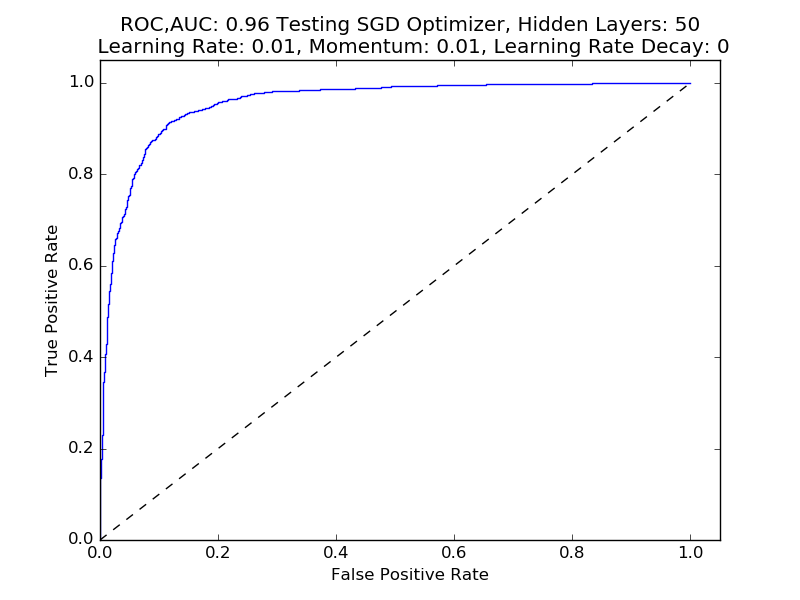

It was found that 50 hidden layer neurons worked well when trained with stochastic gradient descent with a learning rate of 0.01 and a momentum of 0.01. Validation data was taken as 10% of the training data. It achieved a validation AUC of .99 [1b] and a testing AUC of .96 [1a] after training for 100 epochs on the training data. A higher momentum was useful because it helped to speed up the stabilize the convergence of training. ([1] Section 4.3.1)

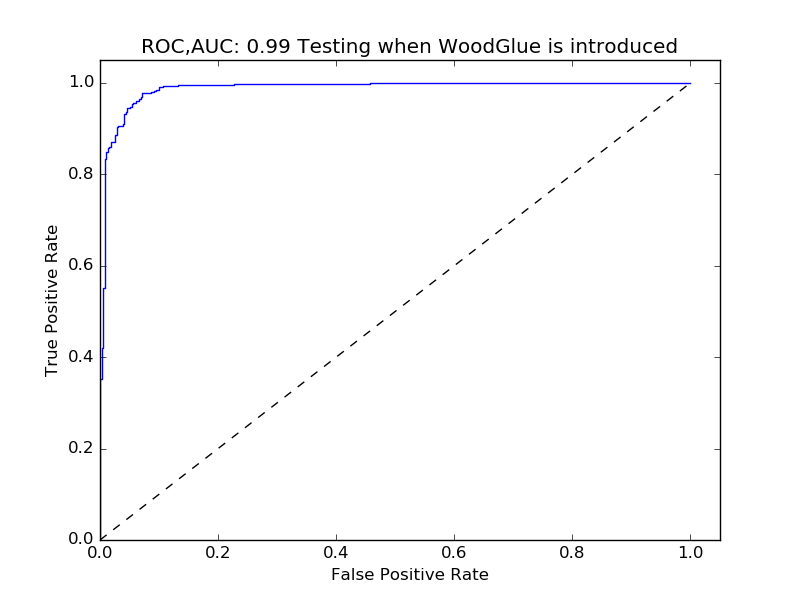

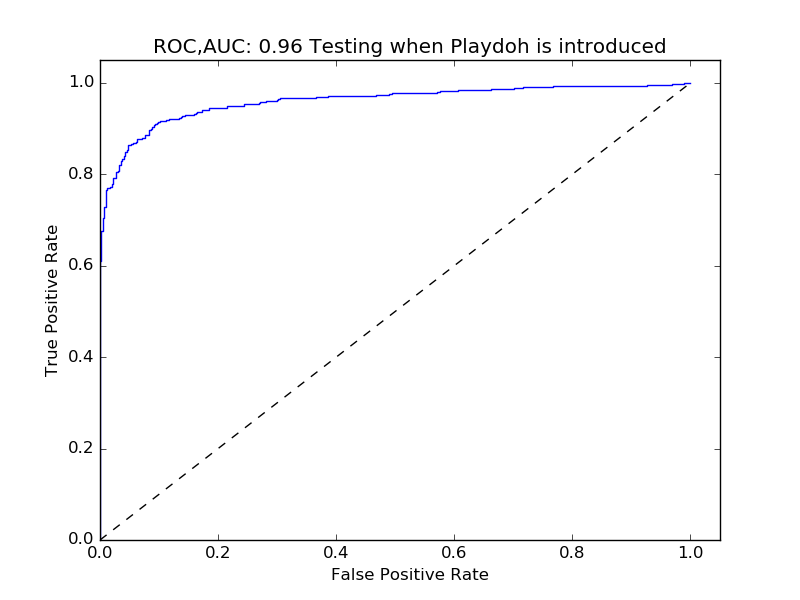

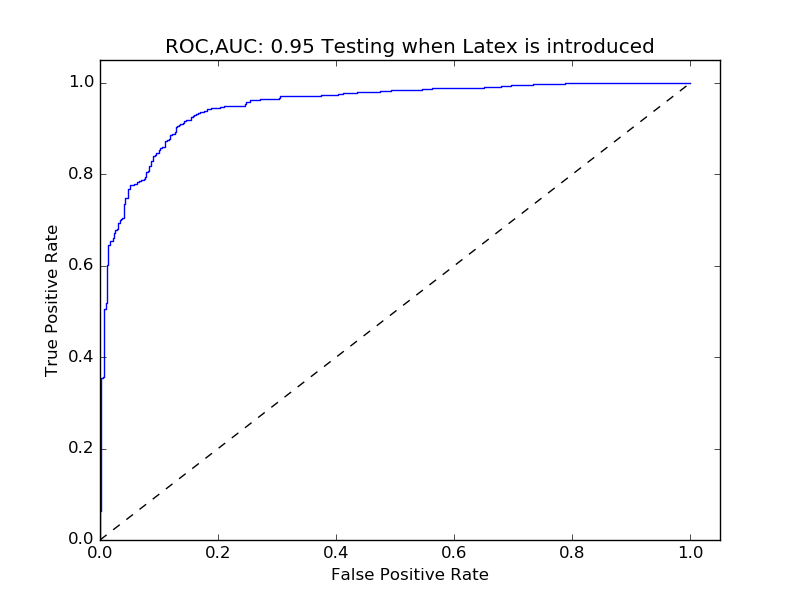

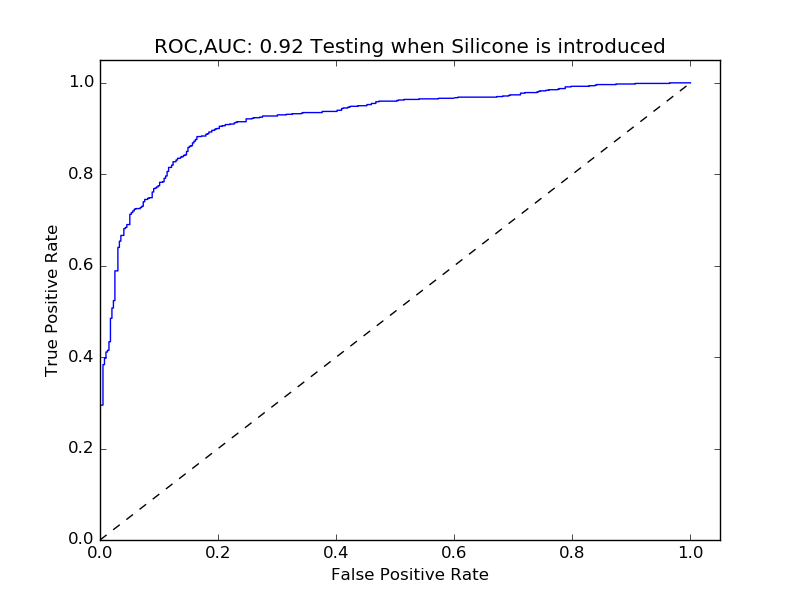

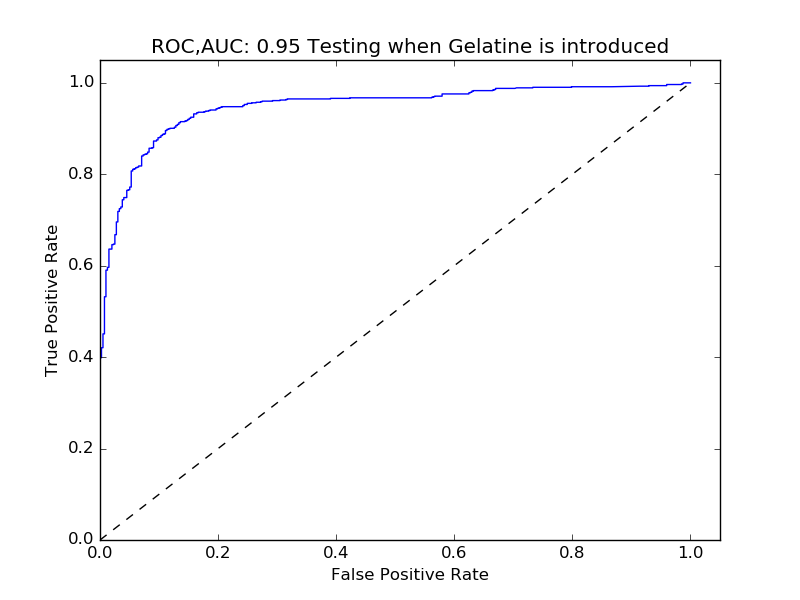

For testing with the introduction of novel materials, it was found that Silicone produced the lowest AUC at .92 [2d]. This was followed by Gelatine [2a] and Latex [2b] which both achieved an AUC of .95. Playdoh had an AUC of .96 [2c]. WoodGlue was the easiest to determine when it was introduced with an AUC of .99 [2e].

Experiments with the number of hidden layer neurons showed that a few neurons could classify spoofs well. It is believed this is because the number of parameters explodes with the number of hidden layer nodes ([1] Section 4.5.1) and the difficulty of classification on extracted features is low. For contrast, the Alexnet network has about 4 million parameters. A rule of thumb states that there should be 10 times the number of parameters as data. ([1] Section 4.5.1) To fully train Alexnet for this classification purpose there would need to be 40 million images, which is unrealistic for a smaller company or research team.

Momentum was useful when training the network because it allowed the system to overcome local minima in the performance surface. ([1] Section 4.3.1) The AUCs were much more repeatable when this momentum constant was larger.

Because the classification neural network is only a traditional feed forward neural network, it is very efficient to train. Running each test took less than a minute on a Nvidia GTX 780, a consumer lower end graphics card.

4 Conclusion

The classifier produces good results with a relatively short training period. The classifier also performs well when exposed to spoof material types it has not seen. Feature extraction using a general purpose image classification neural network produces simpler features which can be more readily trained for specialized image classification tasks. In the future other pre-trained image classification networks could be used for feature extraction or multiple could be used to produce different kinds of features.
